[IaC] Terraform을 통한 AWS 환경 구축

Overview



• Kubernetes Cluster 구축을 위한 AWS 환경 구축 (Terraform)

• [AWS] Rancher를 통한 Kubernetes 클러스터 구축

[AWS] Rancher를 통한 Kubernetes 클러스터 구축

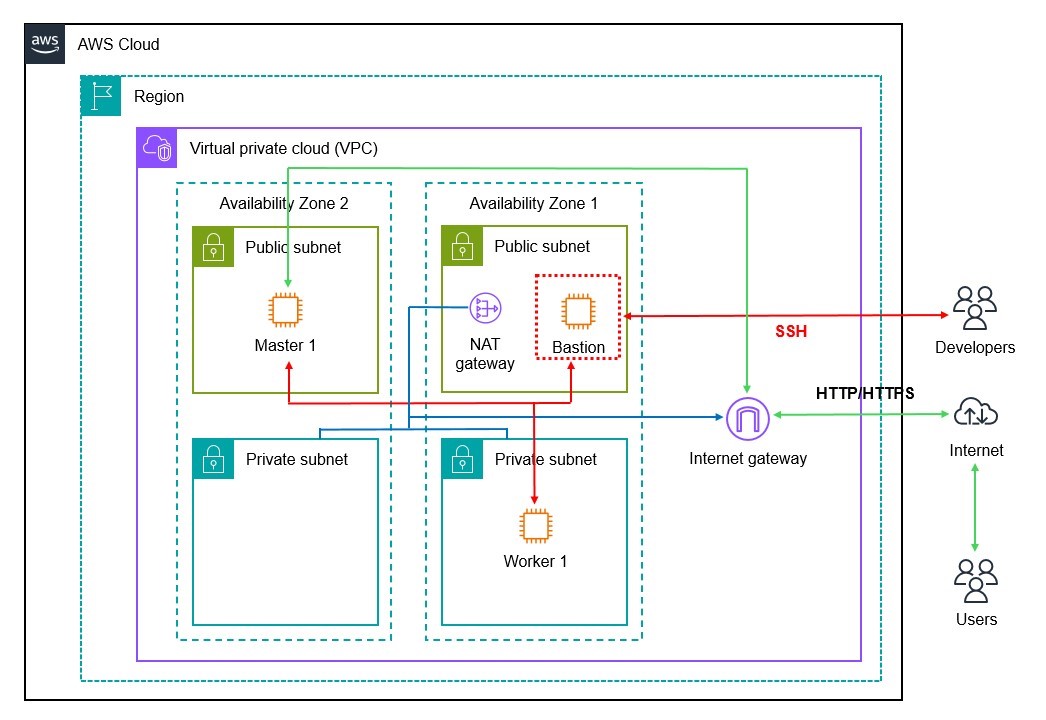

Architecture

Prerequisite



1. Terraform 설치 (링크)

// 기본 명령어
* terraform init
* terraform plan
* terraform apply
* terraform destroy



2. AWS 계정

3. AWS IAM 사용자 (관리자) 생성

   - AdministratorAccess로 간단하게 생성

4. 로컬 환경 변수

   - 3번에서 생성한 관리자의 Access Key와 Secret Key를 로컬 환경 변수에 저장

// AWS IAM 정보 (Windows)
$Env:AWS_ACCESS_KEY_ID=""
$Env:AWS_SECRET_ACCESS_KEY=""

// AWS IAM 정보 (Mac OS)
export AWS_ACCESS_KEY_ID=""
export AWS_SECRET_ACCESS_KEY=""



AWS Infra Provisioning



1. 전체 코드는 아래 'Code Description' 참고

2. Source Tree는 아래와 같다.

env
  ㄴ dev
    ㄴ ec2.tf
    ㄴ eip.tf
    ㄴ iam.tf
    ㄴ key_fair.tf
    ㄴ main.tf
    ㄴ security_groups.tf
    ㄴ variables.tf
    ㄴ vpc.tf



3. Provisioning

$ cd env/dev/
$ terraform init
$ terraform plan
$ terraform apply



4. AWS에서 리소스 생성 확인(Architecture 확인) 및 EC2 접속 테스트

// 방법 1
// AWS > Elastic IP > 'k8s-dev-master-eip-1' IP
$ ping {Master Node EIP}

// 방법 2
// 로컬에 생성된 키로 EC2 인스턴스에 접속
// SSH 접속 (private-ec2-worker-key.pem, public-ec2-bastion-key.pem, public-ec2-master-key.pem)
$ ssh -i {*-key.pem} ubuntu@{ip}



5. AWS 리소스 제거

// 실습 후 리소스 제거
$ cd env/dev/
$ terraform destroy



Code Description



1. env/dev/main.tf

* Provider 설정 (AWS)
* Region 설정

terraform {
    required_providers {
        aws = {
            source  = "hashicorp/aws"
            version = "~> 5.0"
        }
    }
}

# Configure the AWS Provider
provider "aws" {
    region = "ap-northeast-2"
}



2. env/dev/variables.tf

* 변수값 설정

# Project
variable "project_name" { default = "k8s" }
variable "environment" { default = "dev" }

# VPC
variable "cidr_vpc"        { default = "10.0.0.0/16"}
variable "cidr_public_1"    { default = "10.0.0.0/24" }
variable "cidr_public_2"    { default = "10.0.1.0/24" }
variable "cidr_private_1"   { default = "10.0.10.0/24" }
variable "cidr_private_2"   { default = "10.0.11.0/24" }

# Public EC2 (Bastion)
variable "public_ec2_bastion_ami"            { default = "ami-01ed8ade75d4eee2f" }
variable "public_ec2_bastion_instance_type"  { default = "t2.medium" }
variable "public_ec2_bastion_key_name"       { default = "public-ec2-bastion-key.pem" }
variable "public_ec2_bastion_volume_size"   { default = 16 }

# Public EC2 (Master)
variable "public_ec2_master_ami"            { default = "ami-01ed8ade75d4eee2f" }
variable "public_ec2_master_instance_type"  { default = "t2.medium" }
variable "public_ec2_master_key_name"       { default = "public-ec2-master-key.pem" }
variable "public_ec2_master_volume_size"   { default = 8 }

# Private EC2 (Worker)
variable "private_ec2_worker_ami"           { default = "ami-01ed8ade75d4eee2f" }
variable "private_ec2_worker_instance_type" { default = "t2.medium" }
variable "private_ec2_worker_key_name"      { default = "private-ec2-worker-key.pem" }
variable "private_ec2_worker_volume_size"   { default = 8 }



3. env/dev/eip.tf

* Elastic IP 설정

# Elastic IP
## Public EC2 (Bastion)
resource "aws_eip" "public-ec2-bastion-eip" {
    instance = aws_instance.public-ec2-bastion.id

    tags = {
        Name = "${var.project_name}-${var.environment}-bastion-eip"
    }
}

## Public EC2 (Master)
resource "aws_eip" "public-ec2-master-eip-1" {
    instance = aws_instance.public-ec2-master-1.id

    tags = {
        Name = "${var.project_name}-${var.environment}-master-eip-1"
    }
}

## NAT Gateway
resource "aws_eip" "nat-gateway-eip" {
    depends_on = [aws_internet_gateway.internet-gateway]

    tags = {
        Name = "${var.project_name}-${var.environment}-nat-gateway-eip"
    }
}



4. env/dev/ec2.tf

* EC2 생성

# Public EC2
## Public EC2 (Bastion)
resource "aws_instance" "public-ec2-bastion" {
    ami = "${var.public_ec2_bastion_ami}"
    instance_type = "${var.public_ec2_bastion_instance_type}"
    vpc_security_group_ids = [aws_security_group.public-ec2-bastion-security-group.id]
    iam_instance_profile = aws_iam_instance_profile.bastion-iam-instance-profile.name
    subnet_id = aws_subnet.public-subnet-1.id
    key_name = "${var.public_ec2_bastion_key_name}"
    disable_api_termination = false

    root_block_device {
        volume_size = "${var.public_ec2_bastion_volume_size}"
        volume_type = "gp3"
        delete_on_termination = true
        tags = {
            Name = "${var.project_name}-${var.environment}-public-ec2-bastion"
        }
    }

    tags = {
        Name = "${var.project_name}-${var.environment}-public-ec2-bastion"
    }
}

## Public EC2 (Master)
resource "aws_instance" "public-ec2-master-1" {
    ami = "${var.public_ec2_master_ami}"
    instance_type = "${var.public_ec2_master_instance_type}"
    vpc_security_group_ids = [aws_security_group.public-ec2-master-security-group.id]
    iam_instance_profile = aws_iam_instance_profile.master-iam-instance-profile.name
    subnet_id = aws_subnet.public-subnet-2.id
    key_name = "${var.public_ec2_master_key_name}"
    disable_api_termination = false

    root_block_device {
        volume_size = "${var.public_ec2_master_volume_size}"
        volume_type = "gp3"
        delete_on_termination = true
        tags = {
            Name = "${var.project_name}-${var.environment}-public-ec2-master-1"
        }
    }

    tags = {
        Name = "${var.project_name}-${var.environment}-public-ec2-master-1"
    }
}

# Prviate EC2
## Prviate EC2 (Worker)
resource "aws_instance" "private-ec2-worker-1" {
    ami = "${var.private_ec2_worker_ami}"
    instance_type = "${var.private_ec2_worker_instance_type}"
    vpc_security_group_ids = [aws_security_group.private-ec2-worker-security-group.id]
    iam_instance_profile = aws_iam_instance_profile.worker-iam-instance-profile.name
    subnet_id = aws_subnet.private-subnet-1.id
    associate_public_ip_address = false
    key_name = "${var.private_ec2_worker_key_name}"
    disable_api_termination = false

    root_block_device {
        volume_size = "${var.private_ec2_worker_volume_size}"
        volume_type = "gp3"
        delete_on_termination = true
        tags = {
            Name = "${var.project_name}-${var.environment}-private-ec2-worker-1"
        }
    }

    tags = {
        Name = "${var.project_name}-${var.environment}-private-ec2-worker-1"
    }
}



5. env/dev/iam.tf

* EC2 권한 설정

data "aws_iam_policy_document" "iam-policy-document-assume-role" {
    statement {
        actions = ["sts:AssumeRole"]

        principals {
            type        = "Service"
            identifiers = ["ec2.amazonaws.com"]
        }
    }
}

data "aws_iam_policy" "iam-policy-system-manager" {
    arn = "arn:aws:iam::aws:policy/AmazonSSMManagedInstanceCore"
}

data "aws_iam_policy" "iam-policy-cloudwatch-agent" {
    arn = "arn:aws:iam::aws:policy/CloudWatchAgentAdminPolicy"
}

# IAM Role
## Public EC2 (Bastion)
resource "aws_iam_role" "public-ec2-bastion-iam-role" {
    name               = "${var.project_name}-${var.environment}-bastion-iam-role"
    assume_role_policy = data.aws_iam_policy_document.iam-policy-document-assume-role.json
}

resource "aws_iam_role_policy_attachment" "bastion-iam-role-policy-attachment-system-manager" {
    role       = aws_iam_role.public-ec2-bastion-iam-role.name
    policy_arn = data.aws_iam_policy.iam-policy-system-manager.arn
}

resource "aws_iam_role_policy_attachment" "bastion-iam-role-policy-attachment-cloudwatch-agent" {
    role       = aws_iam_role.public-ec2-bastion-iam-role.name
    policy_arn = data.aws_iam_policy.iam-policy-cloudwatch-agent.arn
}

resource "aws_iam_instance_profile" "bastion-iam-instance-profile" {
    name = "${var.project_name}-${var.environment}-bastion-iam-instance-profile"
    role = aws_iam_role.public-ec2-bastion-iam-role.name
}

## Public EC2 (Master)
resource "aws_iam_role" "public-ec2-master-iam-role" {
    name               = "${var.project_name}-${var.environment}-master-iam-role"
    assume_role_policy = data.aws_iam_policy_document.iam-policy-document-assume-role.json
}

resource "aws_iam_role_policy_attachment" "master-iam-role-policy-attachment-system-manager" {
    role       = aws_iam_role.public-ec2-master-iam-role.name
    policy_arn = data.aws_iam_policy.iam-policy-system-manager.arn
}

resource "aws_iam_role_policy_attachment" "master-iam-role-policy-attachment-cloudwatch-agent" {
    role       = aws_iam_role.public-ec2-master-iam-role.name
    policy_arn = data.aws_iam_policy.iam-policy-cloudwatch-agent.arn
}

resource "aws_iam_instance_profile" "master-iam-instance-profile" {
    name = "${var.project_name}-${var.environment}-master-iam-instance-profile"
    role = aws_iam_role.public-ec2-master-iam-role.name
}

## Prviate EC2 (Worker)
resource "aws_iam_role" "private-ec2-worker-iam-role" {
    name               = "${var.project_name}-${var.environment}-worker-iam-role"
    assume_role_policy = data.aws_iam_policy_document.iam-policy-document-assume-role.json
}

resource "aws_iam_role_policy_attachment" "worker-iam-role-policy-attachment-system-manager" {
    role       = aws_iam_role.private-ec2-worker-iam-role.name
    policy_arn = data.aws_iam_policy.iam-policy-system-manager.arn
}

resource "aws_iam_role_policy_attachment" "worker-iam-role-policy-attachment-cloudwatch-agent" {
    role       = aws_iam_role.private-ec2-worker-iam-role.name
    policy_arn = data.aws_iam_policy.iam-policy-cloudwatch-agent.arn
}

resource "aws_iam_instance_profile" "worker-iam-instance-profile" {
    name = "${var.project_name}-${var.environment}-worker-iam-instance-profile"
    role = aws_iam_role.private-ec2-worker-iam-role.name
}



6. env/dev/key_fair.tf

* Key Fair 생성
EC2 생성 시 필요한 Key Fair 생성. 이후, EC2에 ssh 접속할 때 필요

# Key Fair
## Public Key Fair (Bastion)
resource "tls_private_key" "public-ec2-bastion-key" {
    algorithm = "RSA"
    rsa_bits  = 4096
}

resource "aws_key_pair" "public-ec2-bastion-key-fair" {
    key_name   = "${var.public_ec2_bastion_key_name}"
    public_key = tls_private_key.public-ec2-bastion-key.public_key_openssh
}

resource "local_file" "public-ec2-bastion-key-fair-local" {
    filename        = "${var.public_ec2_bastion_key_name}"
    content         = tls_private_key.public-ec2-bastion-key.private_key_pem
    file_permission = "0600"
}

## Public Key Fair (Master)
resource "tls_private_key" "public-ec2-master-key" {
    algorithm = "RSA"
    rsa_bits  = 4096
}

resource "aws_key_pair" "public-ec2-master-key-fair" {
    key_name   = "${var.public_ec2_master_key_name}"
    public_key = tls_private_key.public-ec2-master-key.public_key_openssh
}

resource "local_file" "public-ec2-master-key-fair-local" {
    filename        = "${var.public_ec2_master_key_name}"
    content         = tls_private_key.public-ec2-master-key.private_key_pem
    file_permission = "0600"
}

## Private Key Fair (Worker)
resource "tls_private_key" "private-ec2-worker-key" {
    algorithm = "RSA"
    rsa_bits  = 4096
}

resource "aws_key_pair" "private-ec2-worker-key-fair" {
    key_name   = "${var.private_ec2_worker_key_name}"
    public_key = tls_private_key.private-ec2-worker-key.public_key_openssh
}

resource "local_file" "private-ec2-worker-key-fair-local" {
    filename        = "${var.private_ec2_worker_key_name}"
    content         = tls_private_key.private-ec2-worker-key.private_key_pem
    file_permission = "0600"
}



7. env/dev/security_groups.tf

* EC2 Security Group 생성
인바운드, 아웃바운드 규칙 설정
RKE2 Port 참고 (링크)

# Security Group
## Public EC2 (Bastion)
resource "aws_security_group" "public-ec2-bastion-security-group"{
    name   = "${var.project_name}-${var.environment}-bastion-security-group"
    vpc_id = aws_vpc.vpc.id
    tags = {
        Name = "${var.project_name}-${var.environment}-bastion-security-group"
    }
}

## Public EC2 (Master)
resource "aws_security_group" "public-ec2-master-security-group"{
    name   = "${var.project_name}-${var.environment}-master-security-group"
    vpc_id = aws_vpc.vpc.id
    tags = {
        Name = "${var.project_name}-${var.environment}-master-security-group"
    }
}

## Private EC2 (Worker)
resource "aws_security_group" "private-ec2-worker-security-group"{
    name   = "${var.project_name}-${var.environment}-worker-security-group"
    vpc_id = aws_vpc.vpc.id
    tags = {
        Name = "${var.project_name}-${var.environment}-worker-security-group"
    }
}

# Ingress Rules
## Public EC2 (Bastion) - Ingress Rules - 22 (SSH)
resource "aws_security_group_rule" "public-ec2-bastion-security-group-rule-ingress-22" {
    type                     = "ingress"
    from_port                = 22
    to_port                  = 22
    protocol                 = "tcp"
    cidr_blocks = ["0.0.0.0/0"]
    security_group_id = aws_security_group.public-ec2-bastion-security-group.id
}

## Public EC2 (Bastion) - Ingress Rules - 443 (Https)
resource "aws_security_group_rule" "public-ec2-bastion-security-group-rule-ingress-443" {
    type                     = "ingress"
    from_port                = 443
    to_port                  = 443
    protocol                 = "tcp"
    cidr_blocks = ["0.0.0.0/0"]
    security_group_id = aws_security_group.public-ec2-bastion-security-group.id
}

## Public EC2 (Bastion) - Ingress Rules - 3000 (Gitea)
resource "aws_security_group_rule" "public-ec2-bastion-security-group-rule-ingress-3000" {
    type                     = "ingress"
    from_port                = 3000
    to_port                  = 3000
    protocol                 = "tcp"
    cidr_blocks = ["0.0.0.0/0"]
    security_group_id = aws_security_group.public-ec2-bastion-security-group.id
}

## Public EC2 (Bastion) - Ingress Rules - 5000 (Nexus)
resource "aws_security_group_rule" "public-ec2-bastion-security-group-rule-ingress-5000" {
    type                     = "ingress"
    from_port                = 5000
    to_port                  = 5000
    protocol                 = "tcp"
    cidr_blocks = ["0.0.0.0/0"]
    security_group_id = aws_security_group.public-ec2-bastion-security-group.id
}

## Public EC2 (Bastion) - Ingress Rules - 8081 (Nexus)
resource "aws_security_group_rule" "public-ec2-bastion-security-group-rule-ingress-8081" {
    type                     = "ingress"
    from_port                = 8081
    to_port                  = 8081
    protocol                 = "tcp"
    cidr_blocks = ["0.0.0.0/0"]
    security_group_id = aws_security_group.public-ec2-bastion-security-group.id
}

## Public EC2 (Master) - Ingress Rules - 22 (SSH)
resource "aws_security_group_rule" "public-ec2-master-security-group-rule-ingress-22" {
    type                     = "ingress"
    from_port                = 22
    to_port                  = 22
    protocol                 = "tcp"
    cidr_blocks = ["0.0.0.0/0"]
    security_group_id = aws_security_group.public-ec2-master-security-group.id
}

## Public EC2 (Master) - Ingress Rules - RKE2 server and agent nodes (Node registration. Port should be open on all server nodes to all other nodes in the cluster.)
resource "aws_security_group_rule" "public-ec2-master-security-group-rule-ingress-9345" {
    type                     = "ingress"
    from_port                = 9345
    to_port                  = 9345
    protocol                 = "tcp"
    cidr_blocks = ["0.0.0.0/0"]
    security_group_id = aws_security_group.public-ec2-master-security-group.id
}

## Public EC2 (Master) - Ingress Rules - RKE2 agent nodes (Kubernetes API)
resource "aws_security_group_rule" "public-ec2-master-security-group-rule-ingress-6443" {
    type                     = "ingress"
    from_port                = 6443
    to_port                  = 6443
    protocol                 = "tcp"
    cidr_blocks = ["0.0.0.0/0"]
    security_group_id = aws_security_group.public-ec2-master-security-group.id
}

## Public EC2 (Master) - Ingress Rules - RKE2 server and agent nodes (Required only for Flannel VXLAN)
resource "aws_security_group_rule" "public-ec2-master-security-group-rule-ingress-8472" {
    type                     = "ingress"
    from_port                = 8472
    to_port                  = 8472
    protocol                 = "udp"
    cidr_blocks = ["0.0.0.0/0"]
    security_group_id = aws_security_group.public-ec2-master-security-group.id
}

## Public EC2 (Master) - Ingress Rules - RKE2 server and agent nodes (kubelet)
resource "aws_security_group_rule" "public-ec2-master-security-group-rule-ingress-10250" {
    type                     = "ingress"
    from_port                = 10250
    to_port                  = 10250
    protocol                 = "tcp"
    cidr_blocks = ["0.0.0.0/0"]
    security_group_id = aws_security_group.public-ec2-master-security-group.id
}

## Public EC2 (Master) - Ingress Rules - RKE2 server nodes (etcd client port)
resource "aws_security_group_rule" "public-ec2-master-security-group-rule-ingress-2379" {
    type                     = "ingress"
    from_port                = 2379
    to_port                  = 2379
    protocol                 = "tcp"
    cidr_blocks = ["0.0.0.0/0"]
    security_group_id = aws_security_group.public-ec2-master-security-group.id
}

## Public EC2 (Master) - Ingress Rules - RKE2 server nodes (etcd peer port)
resource "aws_security_group_rule" "public-ec2-master-security-group-rule-ingress-2380" {
    type                     = "ingress"
    from_port                = 2380
    to_port                  = 2380
    protocol                 = "tcp"
    cidr_blocks = ["0.0.0.0/0"]
    security_group_id = aws_security_group.public-ec2-master-security-group.id
}

## Public EC2 (Master) - Ingress Rules - Calico-node pod connecting to typha pod (Required when deploying with Calico)
resource "aws_security_group_rule" "public-ec2-master-security-group-rule-ingress-5473" {
    type                     = "ingress"
    from_port                = 5473
    to_port                  = 5473
    protocol                 = "tcp"
    cidr_blocks = ["0.0.0.0/0"]
    security_group_id = aws_security_group.public-ec2-master-security-group.id
}

## Public EC2 (Master) - Ingress Rules - 80 (Http)
resource "aws_security_group_rule" "public-ec2-master-security-group-rule-ingress-80" {
    type                     = "ingress"
    from_port                = 80
    to_port                  = 80
    protocol                 = "tcp"
    cidr_blocks = ["0.0.0.0/0"]
    security_group_id = aws_security_group.public-ec2-master-security-group.id
}

## Public EC2 (Master) - Ingress Rules - 443 (Https)
resource "aws_security_group_rule" "public-ec2-master-security-group-rule-ingress-443" {
    type                     = "ingress"
    from_port                = 443
    to_port                  = 443
    protocol                 = "tcp"
    cidr_blocks = ["0.0.0.0/0"]
    security_group_id = aws_security_group.public-ec2-master-security-group.id
}

## Public EC2 (Master) - Ingress Rules - ICMP
resource "aws_security_group_rule" "public-ec2-master-security-group-rule-ingress-icmp" {
    type                     = "ingress"
    from_port                = -1
    to_port                  = -1
    protocol                 = "icmp"
    cidr_blocks = ["0.0.0.0/0"]
    security_group_id = aws_security_group.public-ec2-master-security-group.id
}

## Prviate EC2 (Worker) - Ingress Rules - 22 (SSH)
resource "aws_security_group_rule" "private-ec2-worker-security-group-rule-ingress-22" {
    type                     = "ingress"
    from_port                = 22
    to_port                  = 22
    protocol                 = "tcp"
    cidr_blocks = ["0.0.0.0/0"]
    security_group_id = aws_security_group.private-ec2-worker-security-group.id
}

## Prviate EC2 (Worker) - Ingress Rules - RKE2 server and agent nodes (Node registration. Port should be open on all server nodes to all other nodes in the cluster.)
resource "aws_security_group_rule" "private-ec2-worker-security-group-rule-ingress-9345" {
    type                     = "ingress"
    from_port                = 9345
    to_port                  = 9345
    protocol                 = "tcp"
    cidr_blocks = ["0.0.0.0/0"]
    security_group_id = aws_security_group.private-ec2-worker-security-group.id
}

## Prviate EC2 (Worker) - Ingress Rules - RKE2 agent nodes (Kubernetes API)
resource "aws_security_group_rule" "private-ec2-worker-security-group-rule-ingress-6443" {
    type                     = "ingress"
    from_port                = 6443
    to_port                  = 6443
    protocol                 = "tcp"
    cidr_blocks = ["0.0.0.0/0"]
    security_group_id = aws_security_group.private-ec2-worker-security-group.id
}

## Prviate EC2 (Worker) - Ingress Rules - RKE2 server and agent nodes (Required only for Flannel VXLAN)
resource "aws_security_group_rule" "private-ec2-worker-security-group-rule-ingress-8472" {
    type                     = "ingress"
    from_port                = 8472
    to_port                  = 8472
    protocol                 = "udp"
    cidr_blocks = ["0.0.0.0/0"]
    security_group_id = aws_security_group.private-ec2-worker-security-group.id
}

## Prviate EC2 (Worker) - Ingress Rules - RKE2 server and agent nodes (kubelet)
resource "aws_security_group_rule" "private-ec2-worker-security-group-rule-ingress-10250" {
    type                     = "ingress"
    from_port                = 10250
    to_port                  = 10250
    protocol                 = "tcp"
    cidr_blocks = ["0.0.0.0/0"]
    security_group_id = aws_security_group.private-ec2-worker-security-group.id
}

## Prviate EC2 (Worker) - Ingress Rules - Calico-node pod connecting to typha pod (Required when deploying with Calico)
resource "aws_security_group_rule" "private-ec2-worker-security-group-rule-ingress-5473" {
    type                     = "ingress"
    from_port                = 5473
    to_port                  = 5473
    protocol                 = "tcp"
    cidr_blocks = ["0.0.0.0/0"]
    security_group_id = aws_security_group.private-ec2-worker-security-group.id
}

# Egress Rules
## Public EC2 (Bastion) - Egress Rules - Anywhere
resource "aws_security_group_rule" "public-ec2-bastion-security-group-rule-egress-anywhere" {
    type              = "egress"
    from_port         = 0
    to_port           = 0
    protocol          = "-1"
    cidr_blocks = ["0.0.0.0/0"]
    security_group_id = aws_security_group.public-ec2-bastion-security-group.id
}

## Public EC2 (Master) - Egress Rules - Anywhere
resource "aws_security_group_rule" "public-ec2-master-security-group-rule-egress-anywhere" {
    type              = "egress"
    from_port         = 0
    to_port           = 0
    protocol          = "-1"
    cidr_blocks = ["0.0.0.0/0"]
    security_group_id = aws_security_group.public-ec2-master-security-group.id
}

## Private EC2 (Worker) - Egress Rules - Anywhere
resource "aws_security_group_rule" "public-ec2-worker-security-group-rule-egress-anywhere" {
    type              = "egress"
    from_port         = 0
    to_port           = 0
    protocol          = "-1"
    cidr_blocks = ["0.0.0.0/0"]
    security_group_id = aws_security_group.private-ec2-worker-security-group.id
}



8. env/dev/vpc.tf

* VPC 설정

# VPC
resource "aws_vpc" "vpc" {
    cidr_block           = "${var.cidr_vpc}"
    enable_dns_support   = true
    enable_dns_hostnames = true

    tags = {
        Name = "${var.project_name}-${var.environment}-vpc"
    }
}

# Internet Gateway
resource "aws_internet_gateway" "internet-gateway" {
    vpc_id = aws_vpc.vpc.id

    tags = {
        Name = "${var.project_name}-${var.environment}-internet-gateway"
    }
}

# NAT Gateway
resource "aws_nat_gateway" "nat-gateway" {
    allocation_id = aws_eip.nat-gateway-eip.id
    subnet_id     = aws_subnet.public-subnet-1.id
    depends_on    = [aws_internet_gateway.internet-gateway]

    tags = {
        Name = "${var.project_name}-${var.environment}-nat-gateway"
    }
}

# Subnet
## Public Subnet 1
resource "aws_subnet" "public-subnet-1" {
    vpc_id                  = aws_vpc.vpc.id
    availability_zone       = "ap-northeast-2a"
    cidr_block              = "${var.cidr_public_1}"
    map_public_ip_on_launch = true

    tags = {
        Name = "${var.project_name}-${var.environment}-public-subnet-1"
    }
}

## Public Subnet 2
resource "aws_subnet" "public-subnet-2" {
    vpc_id                  = aws_vpc.vpc.id
    availability_zone       = "ap-northeast-2c"
    cidr_block              = "${var.cidr_public_2}"
    map_public_ip_on_launch = true

    tags = {
        Name = "${var.project_name}-${var.environment}-public-subnet-2"
    }
}

## Private Subnet 1
resource "aws_subnet" "private-subnet-1" {
    vpc_id                  = aws_vpc.vpc.id
    availability_zone       = "ap-northeast-2a"
    cidr_block              = "${var.cidr_private_1}"
    map_public_ip_on_launch = false

    tags = {
        Name = "${var.project_name}-${var.environment}-private-subnet-1"
    }
}

## Private Subnet 2
resource "aws_subnet" "private-subnet-2" {
    vpc_id                  = aws_vpc.vpc.id
    availability_zone       = "ap-northeast-2c"
    cidr_block              = "${var.cidr_private_2}"
    map_public_ip_on_launch = false

    tags = {
        Name = "${var.project_name}-${var.environment}-private-subnet-2"
    }
}


# Route table
## Public Route Table
resource "aws_route_table" "public-route-table" {
    vpc_id = aws_vpc.vpc.id

    tags = {
        Name = "${var.project_name}-${var.environment}-public-route-table"
    }
}

## Public Route Table Association 1
resource "aws_route_table_association" "public-route-table-association-1" {
    subnet_id      = aws_subnet.public-subnet-1.id
    route_table_id = aws_route_table.public-route-table.id
}

## Public Route Table Association 2
resource "aws_route_table_association" "public-route-table-association-2" {
    subnet_id      = aws_subnet.public-subnet-2.id
    route_table_id = aws_route_table.public-route-table.id
}

## Public Route
resource "aws_route" "public-route" {
    route_table_id         = aws_route_table.public-route-table.id
    gateway_id             = aws_internet_gateway.internet-gateway.id
    destination_cidr_block = "0.0.0.0/0"
}

## Private Route Table
resource "aws_route_table" "private-route-table" {
    vpc_id = aws_vpc.vpc.id

    tags = {
        Name = "${var.project_name}-${var.environment}-private-route-table"
    }
}

## Private Route Table Association 1
resource "aws_route_table_association" "private-route-table-association-1" {
    subnet_id      = aws_subnet.private-subnet-1.id
    route_table_id = aws_route_table.private-route-table.id
}

## Private Route Table Association 2
resource "aws_route_table_association" "private-route-table-association-2" {
    subnet_id      = aws_subnet.private-subnet-2.id
    route_table_id = aws_route_table.private-route-table.id
}

## Private Route
resource "aws_route" "private-route" {
    route_table_id         = aws_route_table.private-route-table.id
    nat_gateway_id         = aws_nat_gateway.nat-gateway.id
    destination_cidr_block = "0.0.0.0/0"
}

# NACL
## Public Network ACL
resource "aws_network_acl" "public-network-acl" {
    vpc_id     = aws_vpc.vpc.id
    subnet_ids = [aws_subnet.public-subnet-1.id, aws_subnet.private-subnet-2.id]

    egress {
        protocol   = -1
        rule_no    = 100
        action     = "allow"
        cidr_block = "0.0.0.0/0"
        from_port  = 0
        to_port    = 0
    }

    ingress {
        protocol   = -1
        rule_no    = 100
        action     = "allow"
        cidr_block = "0.0.0.0/0"
        from_port  = 0
        to_port    = 0
    }

    tags = {
        Name = "${var.project_name}-${var.environment}-public-network-acl"
    }
}

## Private Network ACL
resource "aws_network_acl" "private-network-acl" {
    vpc_id     = aws_vpc.vpc.id
    subnet_ids = [aws_subnet.private-subnet-1.id, aws_subnet.private-subnet-2.id]

    egress {
        protocol   = -1
        rule_no    = 100
        action     = "allow"
        cidr_block = "0.0.0.0/0"
        from_port  = 0
        to_port    = 0
    }

    ingress {
        protocol   = -1
        rule_no    = 100
        action     = "allow"
        cidr_block = "0.0.0.0/0"
        from_port  = 0
        to_port    = 0
    }

    tags = {
        Name = "${var.project_name}-${var.environment}-private-network-acl"
    }
}
